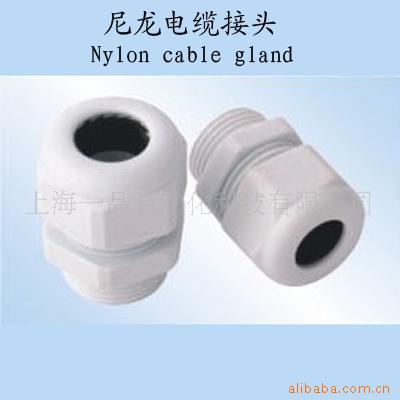

产品名称：epin电缆接头/电缆护套/电缆填料函；
产品材质：尼龙pa6，丁腈橡胶制成；
螺纹规格：公制（m）、德制（pg）、美制（npt/g）
工作温度：-40℃/＋100℃短时可达＋120℃；
产品颜色：黑色、灰色，其他颜色可定做；
产品认证：ce/ul/sgs/rohs；
防护等级：配合o形密封圈达到ip68；
产品特性：电缆卡紧范围大，抗拉强可防水防尘、耐酸碱、油脂及一般溶剂。
规格型号：规格齐全，m6-m75,pg7-pg48，g1/4"-g5"，npt1/8"-npt2
| 规格型号(m制) |
电缆卡口范围(mm) |
gl螺纹长度(mm) |
h(mm) |
ag螺纹外径(mm) |
m.m |
|
m12 * 1.5 |
3-6.5 |
8 |
20 |
12.0 |
15 |
|
m12 * 1.5 |
2-5 |
8 |
20 |
12.0 |
15 |
|
m16 * 1.5 |
4-8 |
8 |
22 |
16.0 |
19 |
|
m16 * 1.5 |
2-6 |
8 |
22 |
16.0 |
19 |
|
m16 * 1.5 |
5-10 |
8 |
24 |
16.0 |
22 |
|
m16 * 1.5 |
3-7 |
8 |
24 |
16.0 |
22 |
|
m20 * 1.5 |
6-12 |
9 |
27 |
20.0 |
24 |
|
m20 * 1.5 |
5-9 |
9 |
27 |
20.0 |
24 |
|
m20 * 1.5 |
10-14 |
10 |
28 |
20.0 |
27 |
|
m20 * 1.5 |
7-12 |
10 |
28 |
20.0 |
27 |
|
m25 * 1.5 |
13-18 |
11 |
30 |
25.0 |
33 |
|
m25 * 1.5 |
9-16 |
11 |
30 |
25.0 |
33 |
|
m32 * 1.5 |
18-25 |
11 |
38 |
32.0 |
42 |
|
m32 * 1.5 |
13-20 |
11 |
38 |
32.0 |
42 |
|
m40 * 1.5 |
22-32 |
13 |
45 |
40.0 |
53 |
|
m40 * 1.5 |
20-26 |
13 |
45 |
40.0 |
53 |
|
m50 * 1.5 |
32-38 |
13 |
47 |
50.0 |
60 |
|
m50 * 1.5 |
25-31 |
13 |
47 |
50.0 |
60 |
|
m63 * 1.5 |
37-44 |
14 |
47 |
63.0 |
65 |
|
m63 * 1.5 |
29-35 |
14 |
47 |
63.0 |
65 |
|
规格型号(pg制) |
电缆卡口范围 (mm) |
gl螺纹长度 (mm) |
h(mm) |
ag螺纹外径 (mm) |
m.m |
|
pg7 |
3-6.5 |
8 |
21 |
12.5 |
15 |
|
pg7 |
2-5 |
8 |
21 |
12.5 |
15 |
|
pg9 |
4-8 |
8 |
22 |
15.2 |
19 |
|
pg9 |
2-6 |
8 |
22 |
15.2 |
19 |
|
pg11 |
5-10 |
8 |
25 |
18.6 |
22 |
|
pg11 |
3-7 |
8 |
25 |
18.6 |
22 |
|
pg13.5 |
6-12 |
9 |
17 |
20.4 |
24 |
|
pg13.5 |
5-9 |
9 |
17 |
20.4 |
24 |
|
pg16 |
10-14 |
10 |
28 |
22.5 |
27 |
|
pg16 |
7-12 |
10 |
28 |
22.5 |
27 |
|
pg21 |
13-18 |
11 |
31 |
28.3 |
33 |
|
pg21 |
9-16 |
11 |
31 |
28.3 |
33 |
|
pg29 |
18-25 |
11 |
39 |
37.0 |
42 |
|
pg29 |
13-20 |
11 |
39 |
37.0 |
42 |
|
pg36 |
22-32 |
13 |
48 |
47.0 |
53 |
|
pg36 |
20-26 |
13 |
48 |
47.0 |
53 |
|
pg42 |
32-38 |
13 |
48 |
52.5 |
60 |
|
pg42 |
25-31 |
13 |
48 |
52.5 |
60 |
|
pg48 |
37-44 |
14 |
49 |
59.3 |
65 |
|
pg48 |
29-35 |
14 |
49 |
59.3 |
65 |
|
规格型号(npt) |
电缆卡口范围(mm) |
gl螺纹长度(mm) |
h(mm) |
m.m |
|
3/8"npt |
4-8 |
15 |
22 |
22/19 |
|
3/8"npt |
2-6 |
15 |
22 |
22/19 |
|
1/2"npt |
6-12 |
13 |
27 |
24 |
|
1/2"npt |
5-9 |
13 |
27 |
24 |
|
1/2"npt |
10-14 |
13 |
28 |
27 |
|
1/2"npt |
7-12 |
13 |
28 |
27 |
|
3/4"npt |
13-18 |
13 |
30 |
33 |
|
3/4"npt |
9-16 |
13 |
30 |
33 |
|
1"npt |
18-25 |
19 |
38 |
42 |
|
1"npt |
13-20 |
19 |
38 |
42 |
|
1-1/4"npt |
18-25 |
16 |
38 |
46/42 |
|
1-1/4"npt |
13-20 |
16 |
38 |
46/42 |
|
1-1/2"npt |
22-32 |
20 |
45 |
53 |
|
1-1/2"npt |
20-26 |
20 |
45 |
53 |
